Lay Flat Ventilation Duct

  • • Nylon fabric with both sides PVC coated, Low friction loss, easy-installed, MSHA approved.
  • • High-strength welded construction provides exceptional airflow performance.
  • • Flame retardant standards NFPA701:2015 and DIN 4102 B2 approved.
  • • High tensile strength and tear strength approved by DIN53354 and DIN53363 test methods.
  • • Diameter: 200 mm-3,200 mm (Custom diameter available).
  • • Standard Length:1 m-300 m (Custom length available).
  • • End connection: zipper / Velcro/ steel ring / eyelets.
  • • Antistatic fabric optional.

Standard Technical Specifications

PVC FabricSL-FPD-ⅡSL-FPD-TⅢSL-FPD-TⅡSL-FPD-ⅠSL-FPD-TⅠ
Threads & Yarn1000D×1000D1000D×1000D1300D×2000D2000D×2000D2000D×2000D
9×99×99×99×912×12
Total Weight (gsm)500±20550±20550±20600±20700±20
ColorYellow / Black / Green / Orange
Tensile Strength
(DIN53354)
Warp (N/5cm)10001150180026003100
Weft (N/5cm)12001400200028003800
Tearing Strength
(DIN53363)
Warp (N)240260350650820
Weft (N)320350400700960
Working Temperature-30℃ ~ +80℃
Flame RetardantNFPA701:2015, DIN 4102 B2
Inside Diameter200mm – 3200mm
Section Length1m – 300m
End FinishZipper / Steel Ring / Velcro / Eyelets
Anti-static≤10 ^8 Ω (if required)

Guangzhou Metro Project
PVC Ventilation Duct for TMCLK HongKong
Coal Mine Project of ventilaiton duct

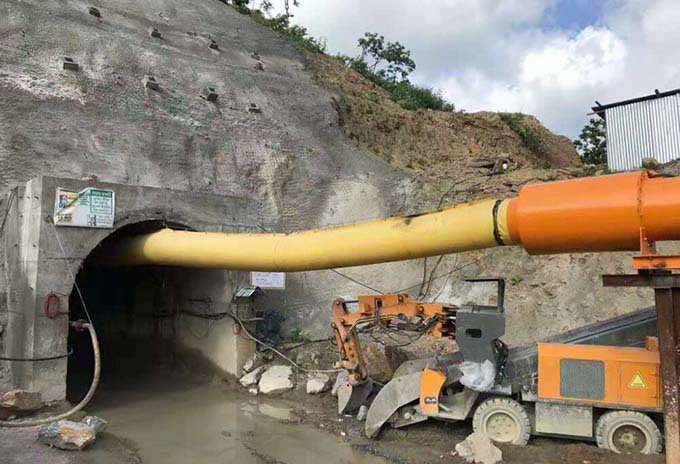

Nepal Hydropower Project
Chengdu Metro Project of flat duct 01

Application

  • • Mining projects
  • • Metro projects
  • • Highway projects
  • • Railway projects
  • • Hydropower station projects
  • • Water diversion projects
  • • Underground oil storage projects
  • • Other underground projects requiring ventilation.

Other Parts of An Underground Ventilation Ducting System

Adapter Duct 01

Adapter Duct

Duct adapter changes the ducting system from a bigger size to a smaller one and vice versa. It minimizes airflow leakages and material costs as the connection between the extractor fan and the duct.

Bend Duct 1

Bend Duct

Available in angles such as 30, 45, 65 and 90 degrees, duct bends flexibly adjust the sharp turns of airflow direction.

Tee WYE Duct 1

Tee and WYE Duct

Degree refers to the angle between the straight duct flow and the branch. Branches of 30, 45, 60, and 90-degree angles, so do the Tee and WYE ducts.

Customize YOUR Ventilation Duct

Every parts of the ventilation ducting system matter. Sulong ventilation duct with multiple custom options fulfills your requirements in budget and quality.

s07 1 icon

Duct Size

s07 2 icon

Fabric Performance

s07 3 icon

End Connection

s07 4 icon

Suspension Seam

s07 6 icon

Logo

Make Your High-Flow Ventilation Duct With Our Experts' Help!
