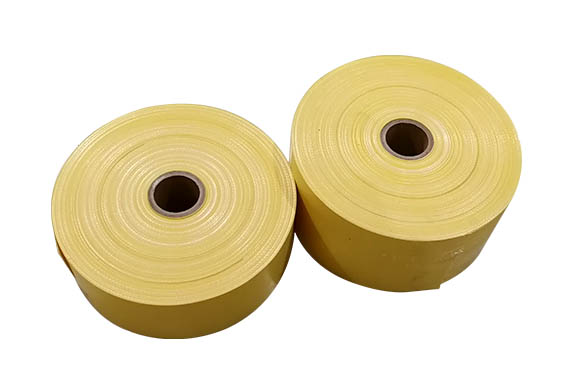

  • PVC Slitting Fabric 01
  • PVC Slitting Fabric 02
  • PVC Slitting Fabric 03
  • PVC Slitting Fabric 04
  • PVC Slitting Fabrics
  • PVC Slitting Fabric 01
  • PVC Slitting Fabric 02
  • PVC Slitting Fabric 03
  • PVC Slitting Fabric 04

PVC Slitting Fabric

Particularly used in textile welding machines (Miller welding machine for instance), which weld semi-rigid and flexible reinforced duct. The min width can be 5cm and max length 500m per roll.

PVC extrusion coated fabric for mine & tunnel ventilation duct is kind of odorless and in-noxious light composite being made of high strength & low shrinkage Polyester mesh. It is hard to be pulled apart and torn off. Though modified characters of PVC, our fabrics has advantages of light weight, environmental protection, anti-aging, heatproof, cold-resistant, puncture-resistance, anti-flaming, anti-static electricity to make the ventilation ducting more than 2 times life time than the other materials. It is widely used for ventilation duct of mining, tunnel and underground projects etc.

Except these standard fabric types, we can also accept customization according to customer requirements. In addition, we also have partner factories that can provide customized PVC laminated fabrics to fully cover your needs for ventilation ducts in different market. We can also accept OEM slitting tasks!



Standard Technical Specifications

PVC FabricSL-FPD-ⅢSL-FPD-ⅡSL-FPD-TⅢSL-FPD-TⅡSL-FPD-ⅠSL-FPD-TⅠ
Threads & Yarn500D×840D1000D×1000D1000D×1000D1300D×2000D2000D×2000D2000D×2000D
9×99×99×99×99×912×12
Total Weight (gsm)420±20500±20550±20550±20600±20700±20
ColorYellow / Black / Green / Orange / Grey
Tensile Strength
(DIN53354)
Warp (N/5cm)80010001150180026003100
Weft (N/5cm)90012001400200028003800
Tearing Strength
(DIN53363)
Warp (N)200240260350650820
Weft (N)260320350400700960
Working Temperature-30℃ ~ +80℃
Flame RetardantNFPA701:2015, DIN 4102 B2
Anti-static≤10 ^8 Ω (if required)
* We hereby state that the above data is only for reference, allowing 5% tolerance.

Make Your High-Flow Ventilation Duct With Our Experts' Help!
